Superior Vacuum Lamination for Multilayer PCBs

Viking provides high-performance vacuum laminating presses, ensuring flawless layer bonding and optimal PCB quality. Our presses are designed to enhance yield, improve efficiency, and maintain consistency in multilayer PCB production.

Our vacuum laminating presses deliver exceptional bonding strength and process control, ensuring high-quality multilayer PCB fabrication.

Some of our Products

For a full list of products and specifications, please contact sales.

400° Vacuum Lamination Equipment

The machine features a stress-analysed, one-piece welded high-tensile steel frame for lasting precision. Its heat-isolated exterior prevents overheating via an air exhaust system. The specialised steel heating platen resists deformation at 400°C, ensuring ±0.015mm/m flatness and ±1.5°C temperature control.

Vacuum Laminating Presses - Medium

The press machine features a high-strength steel frame, precisely engineered and stress-relieved after welding for long-term accuracy. Its heat platen undergoes multiple precision processes, achieving ±0.015mm parallelism and ±1.5°C temperature control. The FCMW piston, ground for durability, has a hardness of HRC 50°–55°, ensuring wear resistance and leak prevention.

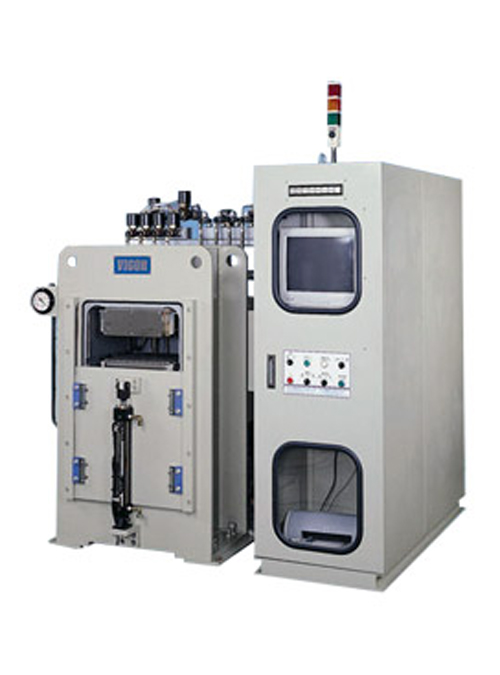

Vacuum Laminating Presses - Small

The press machine’s high-strength steel frame is precisely engineered and stress-relieved after welding for long-term accuracy. Its heat platen undergoes precision grinding, ensuring ±0.015mm parallelism and ±1.5°C temperature control. The FCMW piston, hardened to HRC 50°–55°, is wear-resistant and leak-proof.
